Simply put, the Web Energy Logger (or WEL) is the most economical way to monitor lots of temperature sensors, and a host of other energy related devices in your home or office.  (Here's the manual.) It's ideal to verify the performance or a solar thermal system, or to calculate the efficiency of a geothermal installation, or even to prove that your home really is Net Zero.  Not only does the WEL give you a window into your energy environment, but it also provides a live snapshot and a range of trend charts that you can share on the WEB in real-time.  Finally, the WEL records all your sensor data in monthly log files that are easy to download and import into programs like Excel.      It's compact, versatile, and extremely configurable.

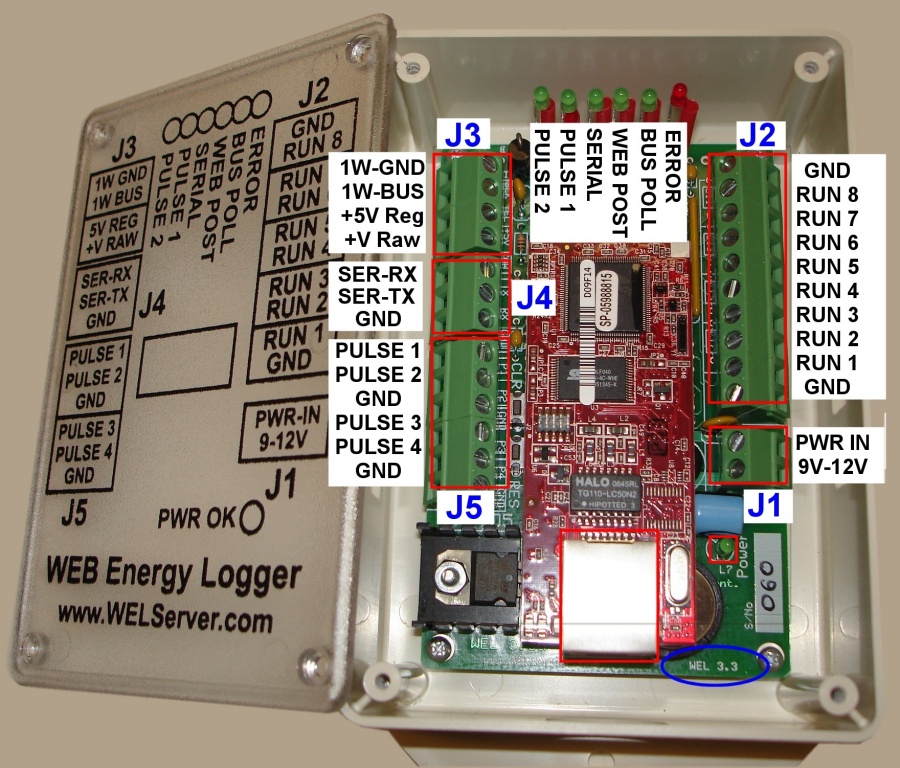

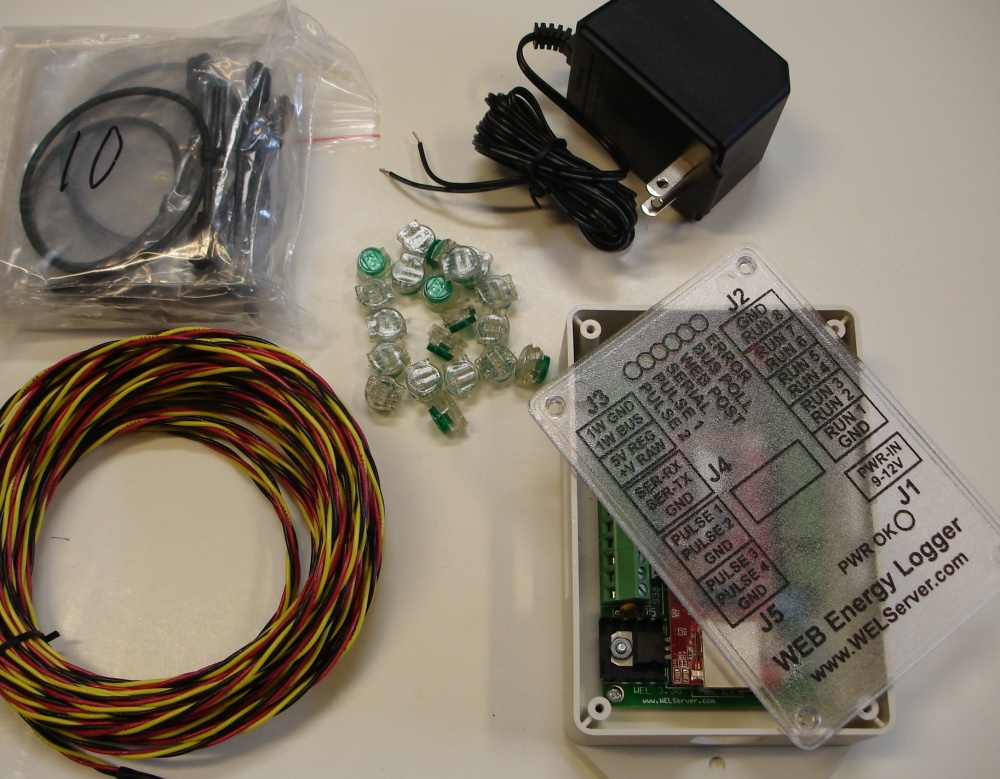

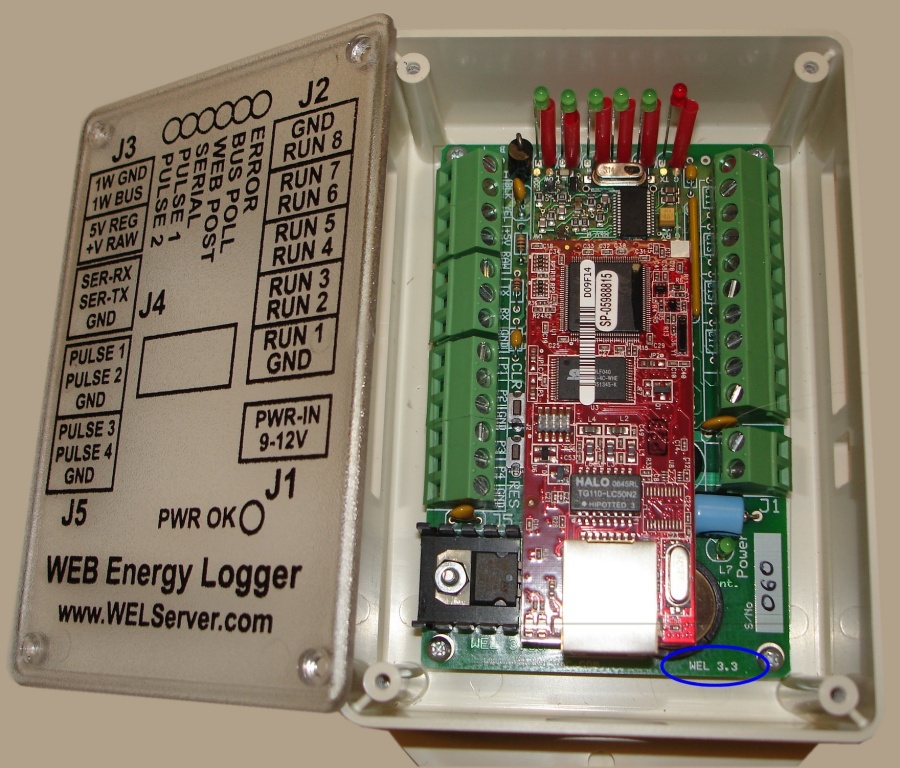

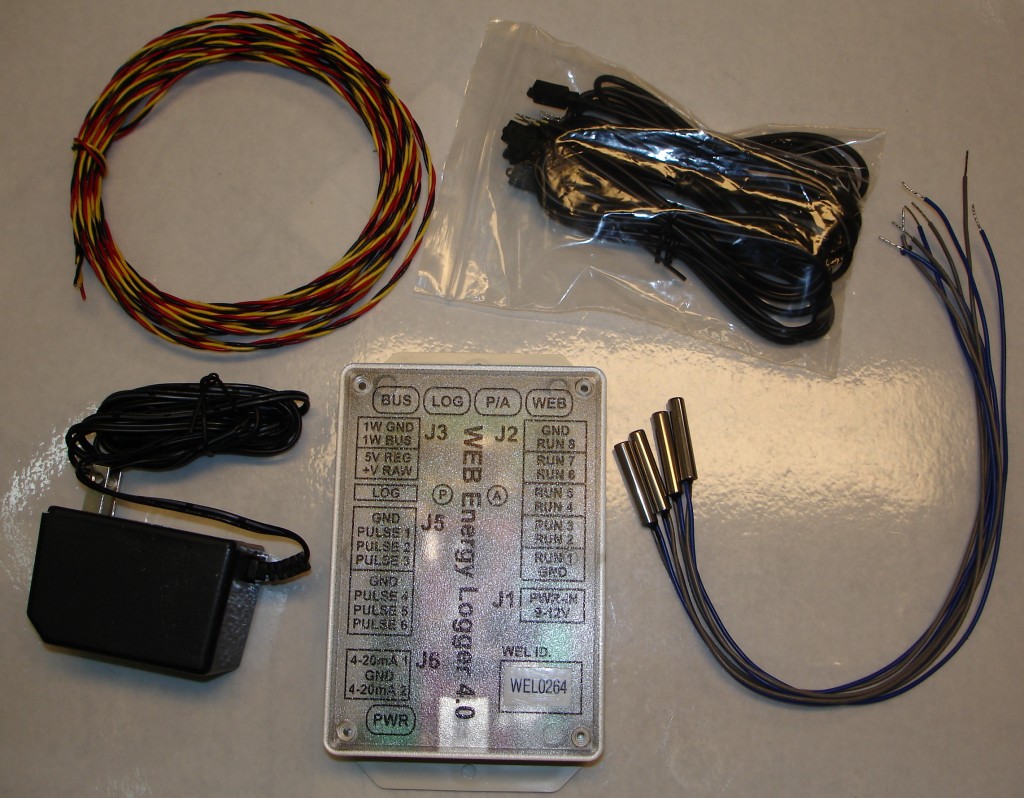

The minimal WEL in a Box (left) is ideal for a DIY'er, and costs $375.  In contrast, the more complete WEL Starter Kit (right) is ready to run out-of-the-box with 10 temperature sensors and costs $525.  All WEL's come with full monitoring software on the board, and a dedicated WEL logging site included in the price.  For the full range of components and prices visit our online store.

To see some real-life samples of what you can do with the WEL, click on the Sample links in the left hand menu
Each link indicates the US State where the WEL is located.  My home is the Sample MD link.

A little history:

The WEL is the third generation of the HVAC logging system that I originally designed for my Energy Efficient home in the mountains of western Maryland.  The latest version (rev 3.3) is optimized for people who want to build their own monitoring system.

When I designed the energy systems for my home, I needed to ensure that they were performing as anticipated.  Since I had incorporated Passive Solar design, Geothermal heating and cooling, Energy Recovery Ventilation and a Radiant Hydronic slab there was a lot to monitor and record. So I needed a system with lots of sensors at reasonable cost.  I've designed and built a bunch of remote sensor systems in my robotics career, so I knew that the cost of lots sensors and input channels was going to be a big problem.  When I came across the Dallas (now Maxim) 1-Wire sensor bus, I knew I'd found the ideal technology.  These digitally addressable sensors all share one pair of wires, so they gave me the ultimate in flexibility and economy.  I just strung a single twisted-pair throughout the house, and snapped on sensors wherever I needed them.

The first generation WEL was a clunky dedicated PC.  The second generation was an embedded processor on a prototyping board.  The third generation was an embedded processor on a custom designed interface board. The most recent design evolution added some additional on-board sensors and protection, and repackaged the WEL into a custom enclosure.  The Web Energy Logger is as low-cost and easy-to-set-up as I can make it.

1. Decide what you want to monitor.  The WEL's main strength is reading LOTS of temperature sensors, but it also reads 4 pulse channels and 8 contact closures without any additional hardware.  By adding sensors to the 1-wire bus, you can also read humidity and solar values, as well as sensing when any of your high power devices are running (like pumps and heaters).   So make a list of all the sensor "points" that you want to log.

2. Order the WEL and sensors you need.  The "WEL Starter Kit" is a great way to begin temperature monitoring, it comes with the WEL in a cool plastic enclosure, a power supply, 40 feet of bus wire and ten temperature sensor probes. Then if you want, you can add specific components from other manufacturers: like the WNB-3Y-208-P-300Hz WattNode Wattmeter from Continental Control Systems, or the Humidity/Solar sensor from Hobby-Boards.com .

3. When you order the WEL, you'll get a username and password to log into the Owner Setup page of this website.  Here you can specify your data archiving requirements.  Such things as:
   What order your data gets recorded in the downloadable monthly log files.
   How you want your sensor data displayed on a custom "System Diagram" you upload to the site.
   What custom trend graphs you want generated.

4. When your WEL arrives, you connect it to your home LAN and power it up.  Using the Web browser on your home computer you configure the board, and assign names to each sensor as you add them to the 1-wire network.  You can also add simple expressions to combine several sensor values together (like to calculate BTU's or Net Power use).

5. Start running your 1-wire bus, and adding sensors.  As you add each sensor, you'll scan the bus and then assign a name to the device that appears.  Your sensors will immediately become available for charting and logging.

6. As the WEL runs it will sample the sensor bus and automatically connect out to the Internet and post your sensor data to the WELServer.com website (or one of your choice).  WELServer will generate your system diagram and trend charts, and post them on your own WEL Data page.  You can include these same images in your own website just by referring to their unique URL's.

Now start watching you system.  Add new trend graphs as you need them, and share your data with the community.  It's amazing what you can lean about your system that you never anticipated.

Use the menu at the left for more detailed information about the WEL, or to see some live data from homes like yours.

The Web Energy Logger is an Internet Appliance that monitors a 1-wire sensor network, and posts live data to a web site for display and analysis. The WEL was designed for people interested in monitoring the energy distribution of their own homes or businesses. For more background, visit the WEL homepage. ©2008 Phil Malone - - www.OurCoolHouse.com
