Energy and Thermal data for Bancroft Ontario Home - WEL0216

Bancroft Ontario Home : Bancroft, Ontario Canada

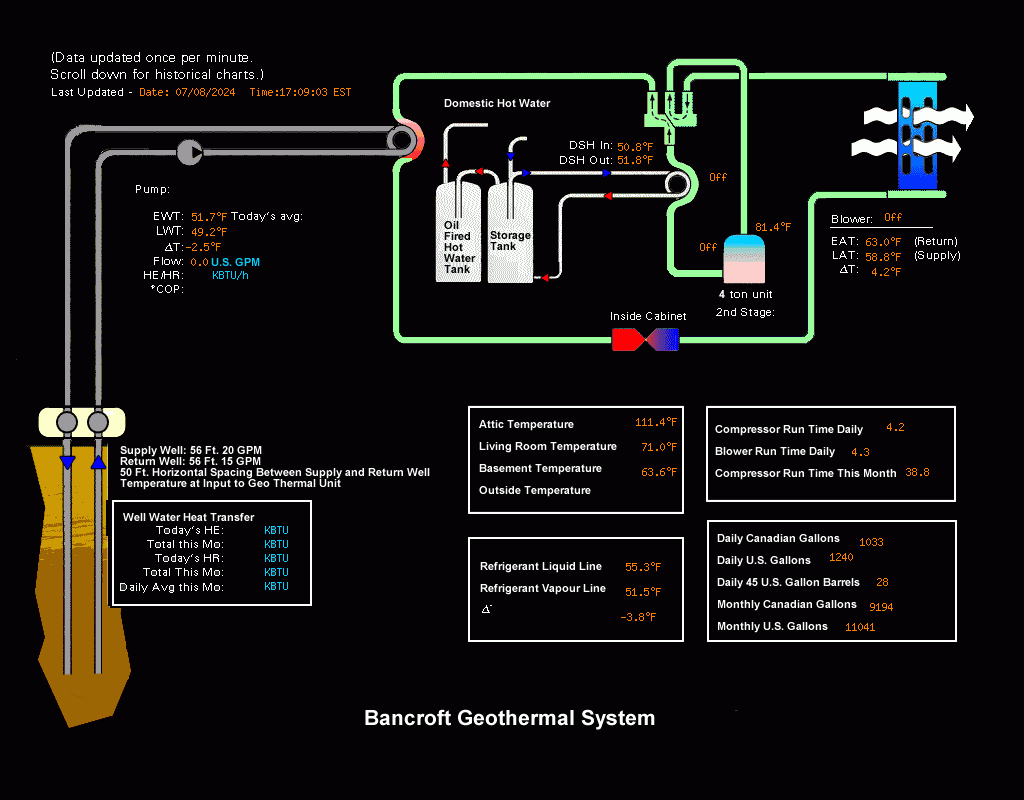

4 Ton Open Loop system using 2 wells at 56 ft deep, The supply well has a Constant Pressure pump and can deliver 22 GPM of water for the Furnace and Domestic water, The return well is a 15 GPM well and is used to return the water back to the ground. The Furnace is a Climate Master 27 Split system, There is an A coil installed in the Airco Oil Furnace and the Oil Furnace acts as the Air Handler in the system, The system also has a Water Meter to monitor the usage of water.

More WEL0216 data.
