Energy and Thermal data for Brueggeman Cottage - WEL0561

Brueggeman Cottage : Sanford, MI USA

Click on the link WEL0561 above to expand this page.

The ''Cottage'' was built in 2005 using 2x6 Walls (R21)and R44 Ceiling. Lakeside has lots of windows and we originally used a 90-plus propane furnace to heat the 4350 square ft of living space. Geothermal was installed Sept 2011 with the propane furnace being left in place for emergency heat.
A Honeywell TZ-4 Controls the Zone Dampers used to divide the heat load in half (Upstairs Zone2, Downstairs Zone1). Smart-House technology was installed using a HAI(Home Automation,Inc) controller with associated alarm, relays and sensors.

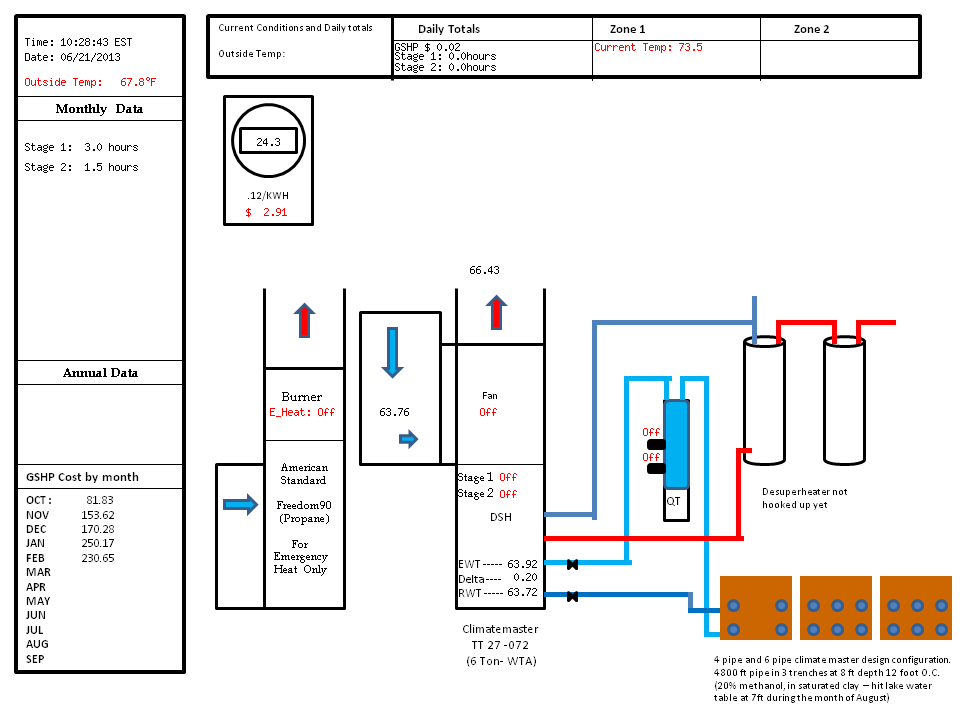

The ClimateMaster TT27 6 ton unit, non-pressurized (QT) system is supported by a closed loop (3 trenches each300 ft long), using a 6 pipe configuration in two of them, and a 4 pipe configuration in the third. The 4800 foot of 3/4'' pipe has an average depth of 8 ft in saturated clay (standing water table equalized with the lake bed).

More WEL0561 data.
